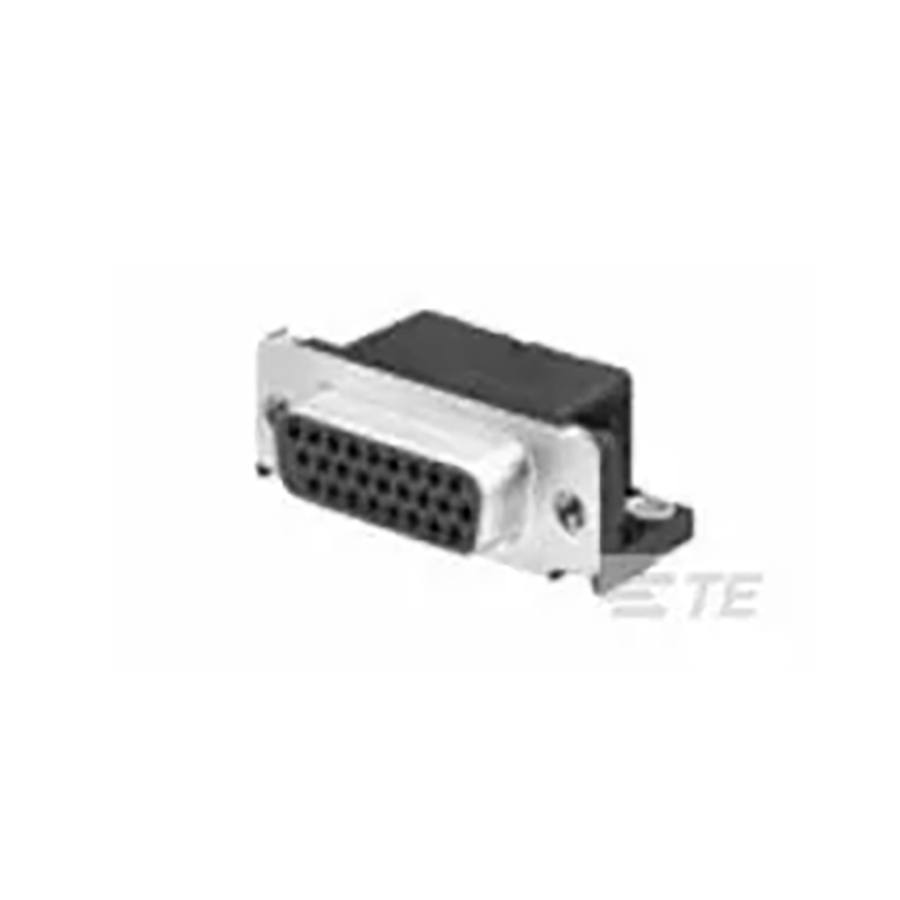

1734530-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1734530-3
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:15 Solder Female
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 30.8 mm |
| Width | 12.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 15 |
| Height | 12.5 mm |
| Material | Metal |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 22 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.29 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 15 |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Number of Contacts | 15 |
| ELV | Compliant |
| Body Material | Metal |
| Hole Diameter | 3.18 mm |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Housing Color | Black |
| Plating | Nickel |
| Body Plating | Nickel |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.6 mm |
| Preloaded | Yes |
| Shell Material | SPCC |
